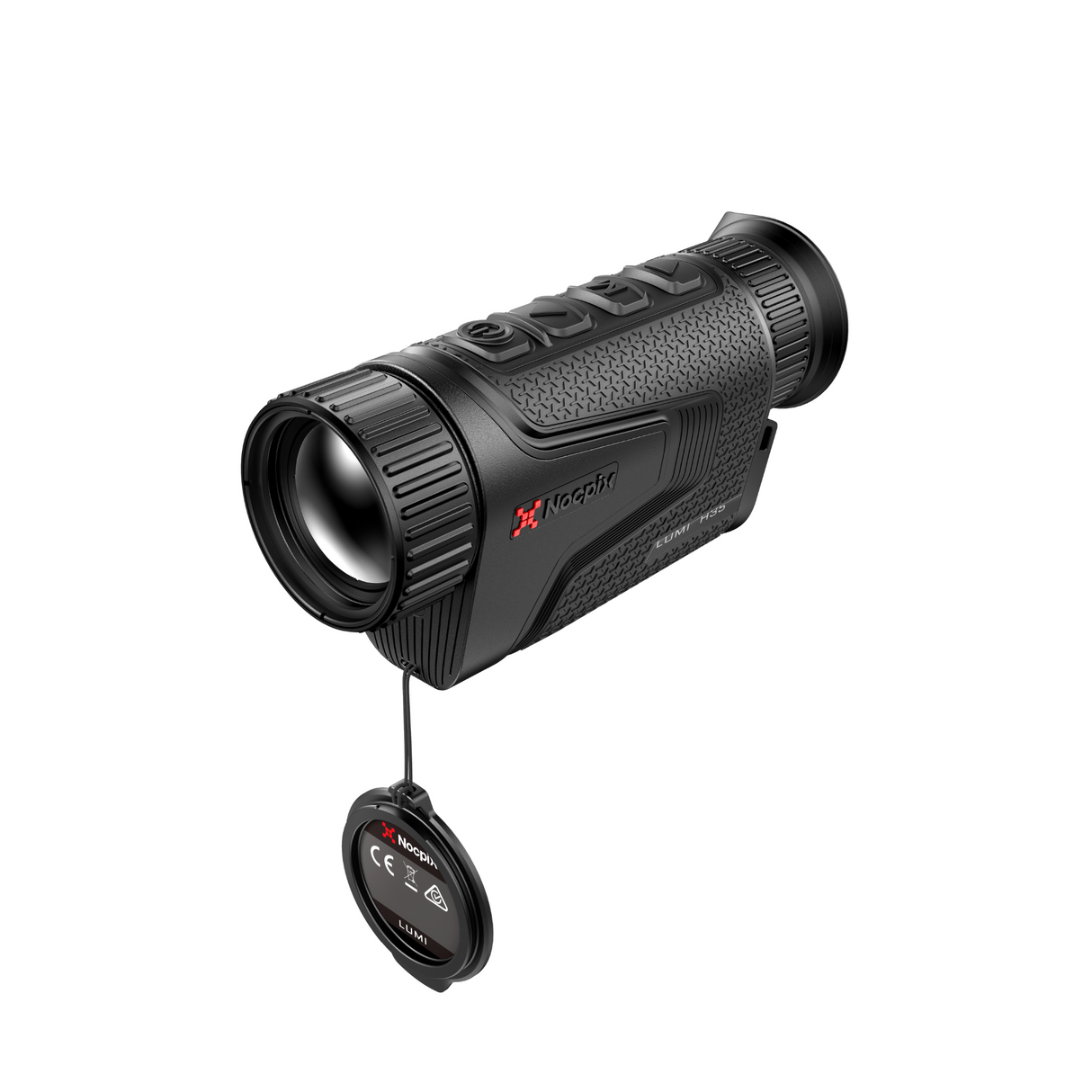

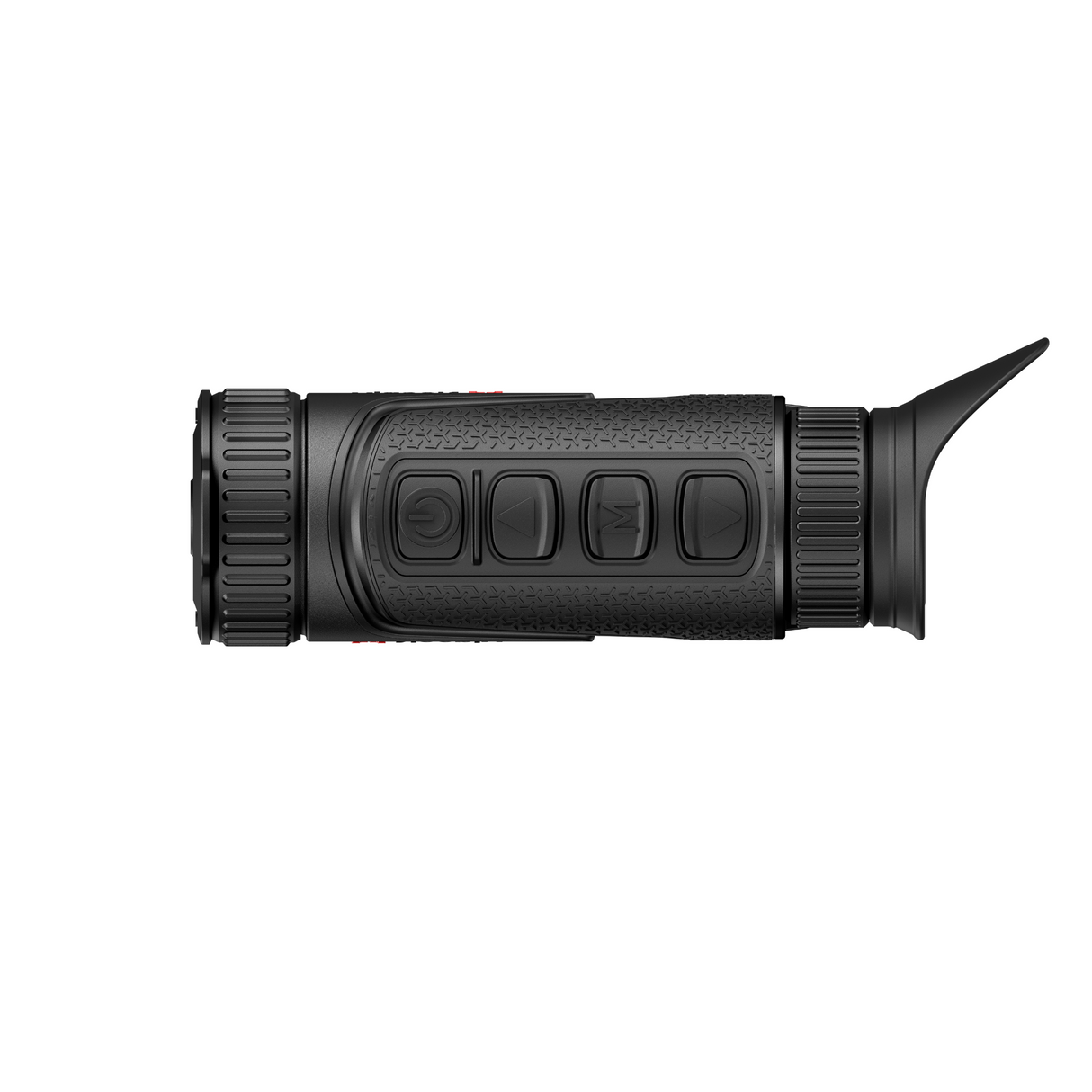

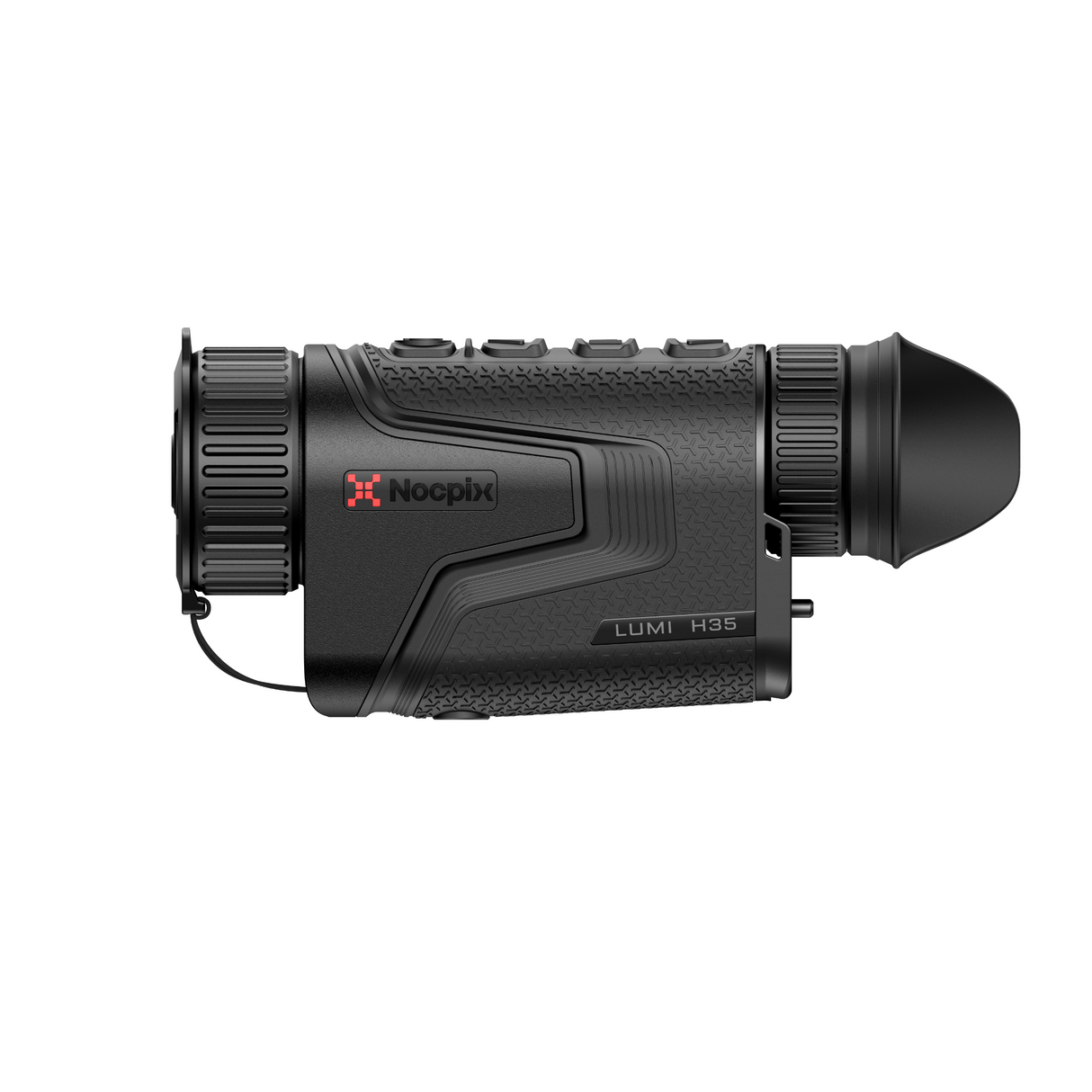

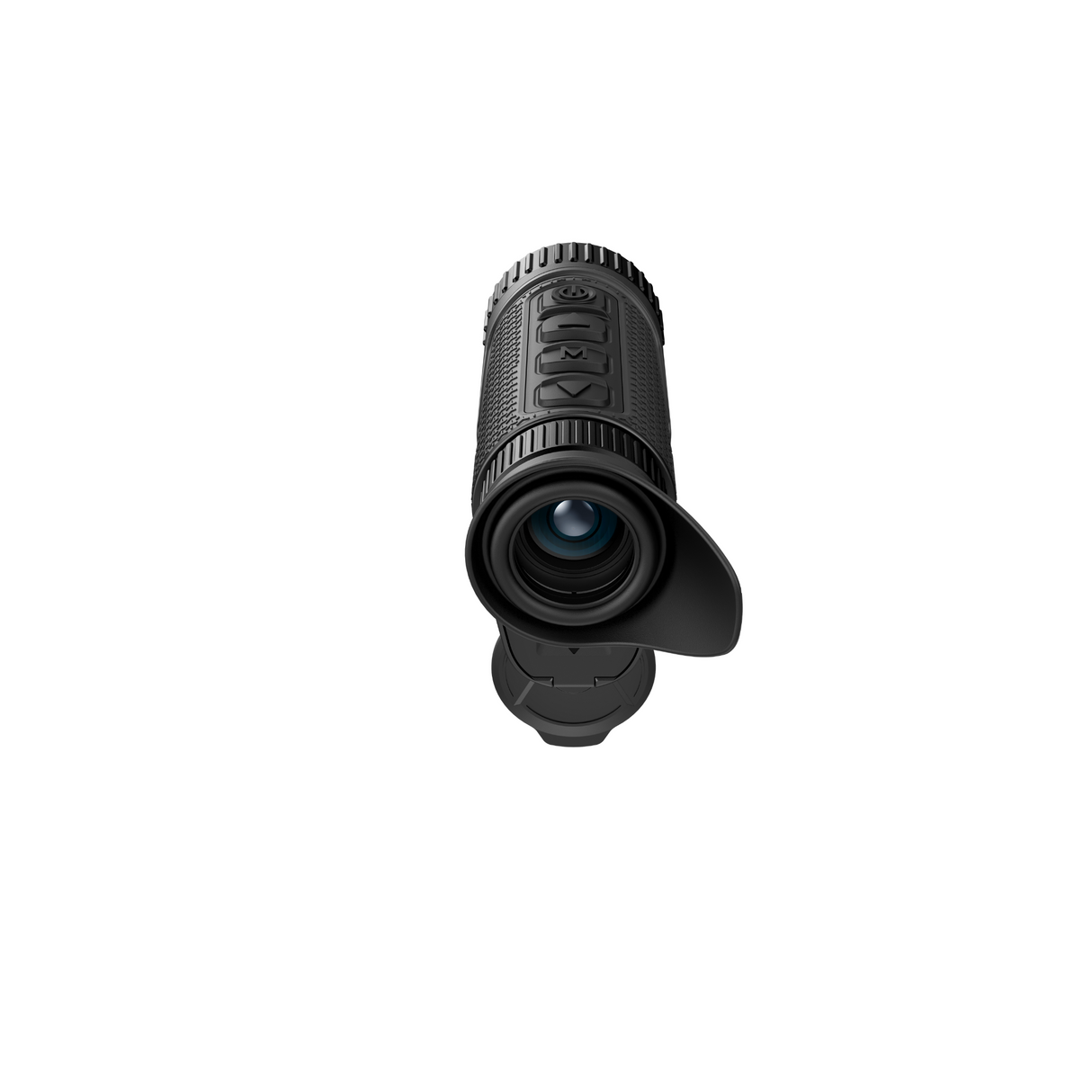

Nocpix LUMI H35 Thermal Imager
Nocpix LUMI H35 Thermal Imager is backordered and will ship as soon as it is back in stock.
Pickup available at Armota parduotuvė Zarasuose
Usually ready in 1 hour
Nocpix Premium Quality Line
Nocpix LUMI series thermal imagers – these are the latest InfiRay premium quality thermal imagers from the Nocpix line. This new LUMI series is an updated and improved IRIS series, distinguished by the most modern technologies and highest quality image solutions. It guarantees unparalleled image accuracy and clarity even in the most challenging conditions, providing you with a detailed view.
High-quality image
640×512 resolution provides a clear and detailed image, allowing you to recognize object shapes, textures, and contours, which is especially important when observing fine details or when objects are far away. NETD ≤18mK thermal sensitivity ensures that even the smallest temperature differences are clearly visible. This allows monitoring subtle heat changes and obtaining accurate data even in challenging conditions. A high 50Hz frame rate ensures smooth video transmission and stability, allowing effective observation of fast-moving objects without image distortion or interference.
HD 1024×768 AMOLED display
With a resolution of 1024×768 pixels, the display provides a clear and detailed image, allowing for easy distinction of fine details and object characteristics. This is particularly useful when precise assessment of a situation or analysis of small elements is required. AMOLED technology offers excellent color reproduction, providing exceptional contrast and image vibrancy. This allows for better visibility of details and delivers an image that is clearer and more pleasant to the eye.
Reality+ Technology
The new Nocpix LUMI H35 thermal imager is made with Reality+ technology. This technology eliminates "image noise", increases image contrast and highlights details, creating a much sharper and clearer thermal image. This technology results in significantly higher and superior image quality.
Lens light transmission
The F0.9 lens transmits 20% more light compared to a conventional F1.0 lens, making the images transmitted by Nocpix LUMI series thermal imagers even brighter and clearer.
Detection capabilities
The 35 mm lens together with 640×512 resolution allows for efficient and detailed analysis of observed objects. Detection range up to 1800 meters.
Protection class IP67
The device is fully protected against dust and completely waterproof, even when submerged up to 1 meter deep for up to 30 minutes. This guarantees that the Nocpix LUMI H35 can withstand various weather conditions, including rain, snow, and dirt, and is also resistant to water ingress, allowing it to be used even in the most extreme conditions.
Silent buttons
Silent buttons are specially designed to enhance user experience and functionality in various situations. These buttons operate silently, making them perfect when silence is required, for example, during hunting. This helps avoid distractions and does not create noise that could scare animals. Additionally, silent buttons are resistant to dust and water, which increases the device's durability and reliability, ensuring its dependable operation even in extreme conditions.
Color palette
The LUMI H35 thermal imager is equipped with various color palettes, including red and green palettes designed to protect eyes from fatigue, allowing the thermal imager to be used for extended periods without eye strain.
Compact
LUMI series thermal imagers feature an ergonomic design, compact size (143×47×74 mm), and lightweight (345 g), making them easy to carry.
Field of view
A 12.5×9.4° field of view allows for more precise focus on a smaller area, providing more detail and better visibility of objects at longer distances. This is particularly useful when observing small or distant objects while maintaining a high level of detail. A 22×16° field of view provides a wider overview, allowing you to see a larger portion of the environment at once. This is ideal for situations where you want to quickly survey a wider area or observe moving objects in a broader zone. This combination of two fields of view allows the user to flexibly switch between detailed object observation and a broader environmental overview, making it very useful for both short and long distances.
Specifications
| Model | LUMI H35 |
| Resolution | 640×512 |
| Pixel size, μm | 12 |
| Thermal sensitivity NETD, mK | ≤18 |
| Frame rate, Hz | 50 |
| Lens, mm | 35 F0.9 |
| Field of view, ° | 12.5×9.4 /22×16 |
| Magnification | 2.5~20 |
| Detection range | 1800 |
| Diopter adjustment | -5~+5 |
| Display | AMOLED 1024×768 |
| Battery | Replaceable 18650 m |
| Max. operating time, (t=22°C) h | 4.5 |
| Sound recording | Yes |
| Memory capacity, GB | 32 |
| Protection class | IP67 |
| Operating temperature, °C | -20 ~ +50 |
| Weight, g (with battery) | 345 |
| Dimensions, mm | 143×47×74 |
