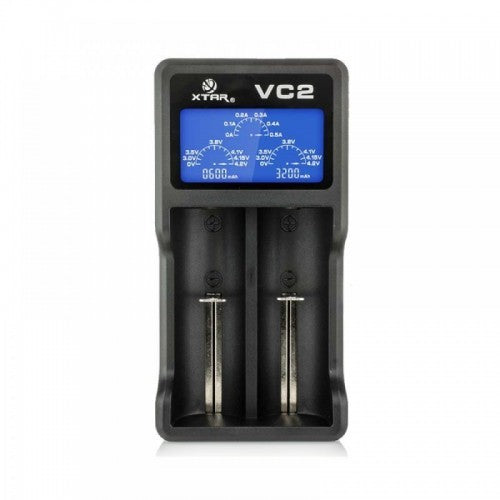

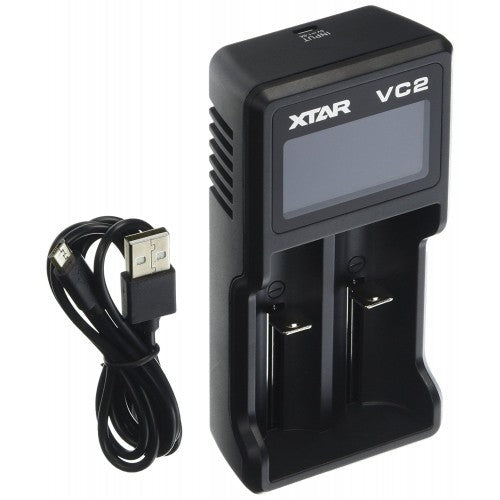

Universal Battery Charger XTAR VC2

XTAR VC2 Battery Charger, LiION with LCD Display

The XTAR VC2 charger is the world's first Li-ion battery charger with an innovative tachometer-style LCD screen. This charger will show the true capacity of the battery! The VC2 will display the battery's mAh capacity, assuming the battery is fully discharged before charging. Like all our chargers, it can intelligently identify the input power and automatically adjust the most suitable charging current (0.15A ~ 0.5A). It is compatible with both IMR Li-ion batteries and small capacity batteries. Both channels are independent and it can also tell you if you have bad batteries. Like all XTAR chargers, the VC2 features overcharge, over-discharge, short-circuit, and reverse polarity protection. Adopted from the VP2 charger, the VC2 can also revive over-discharged batteries.

What's included:

- VC2 charger
- MicroUSB cable
- Microfiber pouch

Input DC: 5V 1.0A

Max constant charging current: 500mA * 2
Cut-off voltage (output voltage): 4.20V
Cut-off current: 80mA
Operating temperature: 0-40
Net weight: 109g
Dimensions: L131 * W66 * H33mm
Applicable to: 10440/14500/14650/16340/17500/17670/18350/18500/18650/18700/22650/25500/26650 3.6 / 3.7V Li-ion batteries

Features:

- Compatible with IMR Li-ion batteries
- Each channel is independent
- Three-stage charging algorithm (TC-CC-CV)
- Soft-start function to avoid damage from high charging current during charging.
- Automatically shuts off when the battery is fully charged
- Precise 4.2V cut-off voltage
- Compatible with small capacity batteries
- Overheat protection
- LCD screen shows real-time status of each battery
- Uses high-power intelligent DC-DC circuit, significantly reducing energy loss
- Built-in reverse polarity and short-circuit protection circuit
- Uses fire-resistant material for the casing
- 0V activation function can revive over-discharged / sleeping batteries
- 120-angle high-definition VA screen to show charging current, voltage, and power indicator, you can see the charging status from any angle.
- Certified by CE, RoHS

How to check battery mAh capacity:
Step 1: Insert a discharged battery (with a discharge voltage usually below 3.0V)
Step 2: Let the battery charge and observe the 0000mAh displayed on the screen. Do not remove the battery until it is fully charged.
Step 3: When the battery is fully charged, the screen will show "FULL" and the entire screen will flash 3 times every 10 seconds.
Step 4: The mAh on the screen should now give you the true capacity of the batteries.
